Composite Cable XLPE and PUR

COMPOSITE CABLEXLPE/PUR

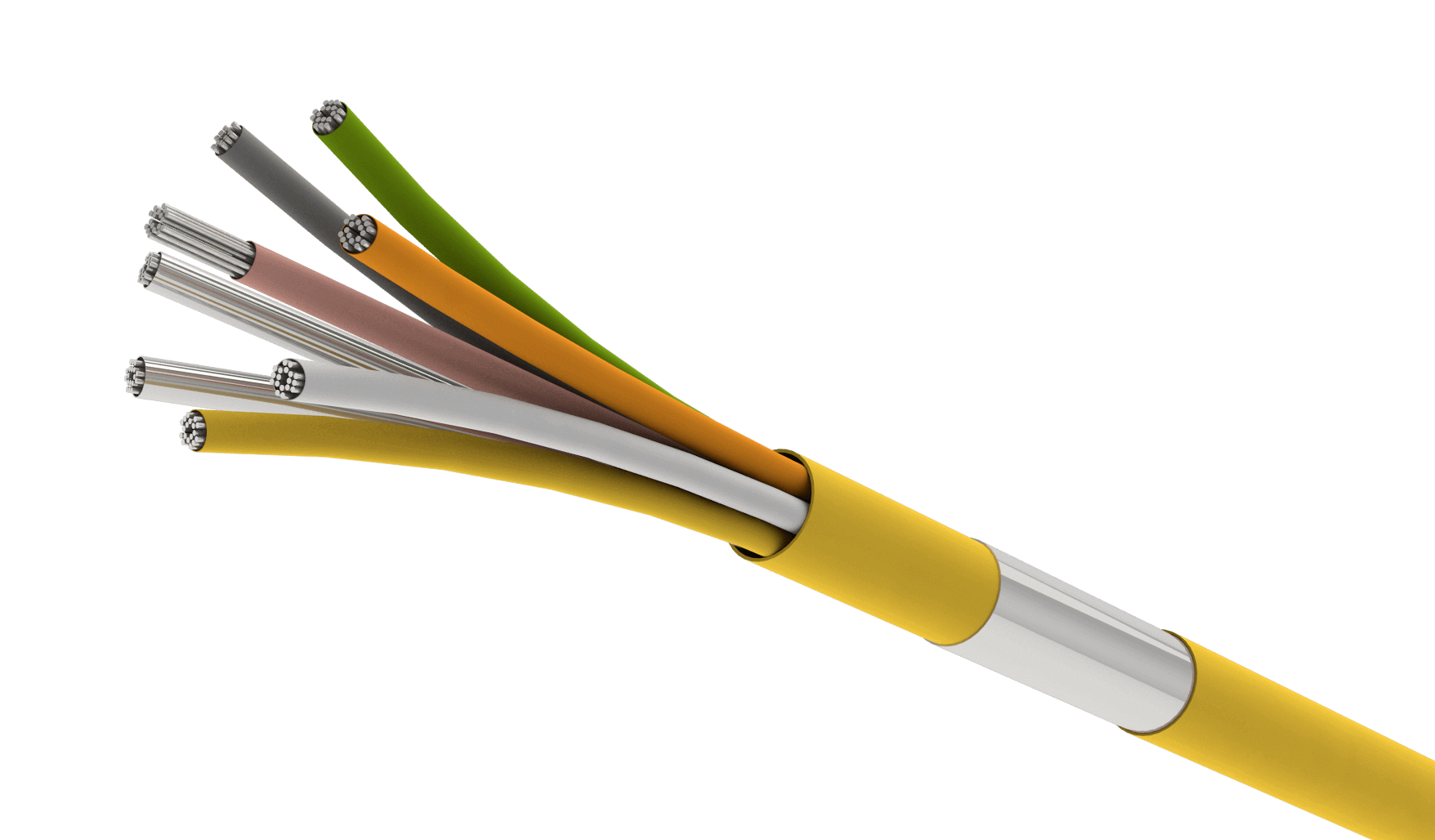

Tin copper conductors – XLPE insulation – conductors individual screen – overall screen – XLPE inner jacket – tin plated copper braid armour – PUR jacket

END USE

signal cable for industrial motors

MANUFACTURE

Conductors: 6 tin plated copper solid or stranded (4 + 2)
Insulation: XLPE
Colour code: green – yellow – grey – pink + (white – brown)
Screen: Bonded wrapped aluminium/polyester tape over single brown and white cores + drain tin copper wire
Core laying-up: 4 cores + 2 individual screened cores twisted + Central XLPE filler
Separator: overall no woven wrapped tape
Inner jacket; XLPE
Overall screen: Wrapped aluminium/polyester tape with outer metallic surface +Tinned copper braid +Overall No woven tape wrapped
Outer jacket: Thermoplastic polyurethane (PUR)
Temperature rating: -40 +90°C
