DESCRIPTION

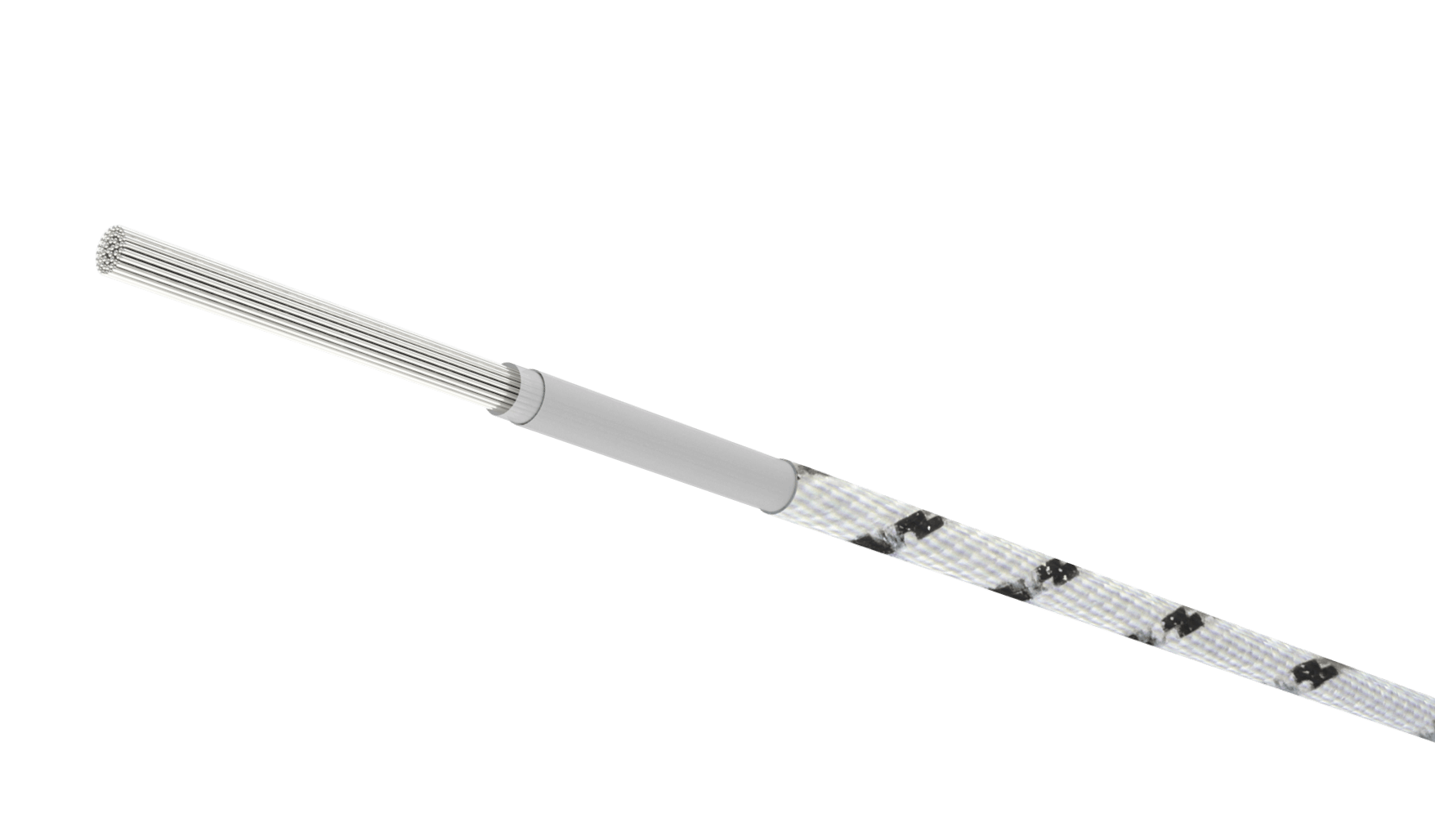

PTFE + fiberglass insulation - fiberglass braid outer sheath
APPLICATION
High temperature electrical heaters
CONSTRUCTION
- Conductor: Solid or stranded
- Insulation: PTFE tape + impregnated lapped fiberglass type “E” or “R/S”
- Outer layer : braided fiberglass type “E” or “R/S”
- Impregnation type: liquid silicone resin or varnish
- (Optional) Outer armour: tin plated copper wire braid or stainless/galvanized steel braid
- Working temperature: + 260°C
- Rating voltage = 300/500V
- Voltage testing = range 1500 / 2000V
FEATURES
- Thermal rating: very high
- Abrasion resistance: fair
- Chemical resistance: good
- Moisture resistance: poor
- Fire resistance: excellent
