TYPE K - SILICONE INSULATED CABLE

Siccet Siccet
TYPE K - SILICONE INSULATED CABLE


DESCRIPTION

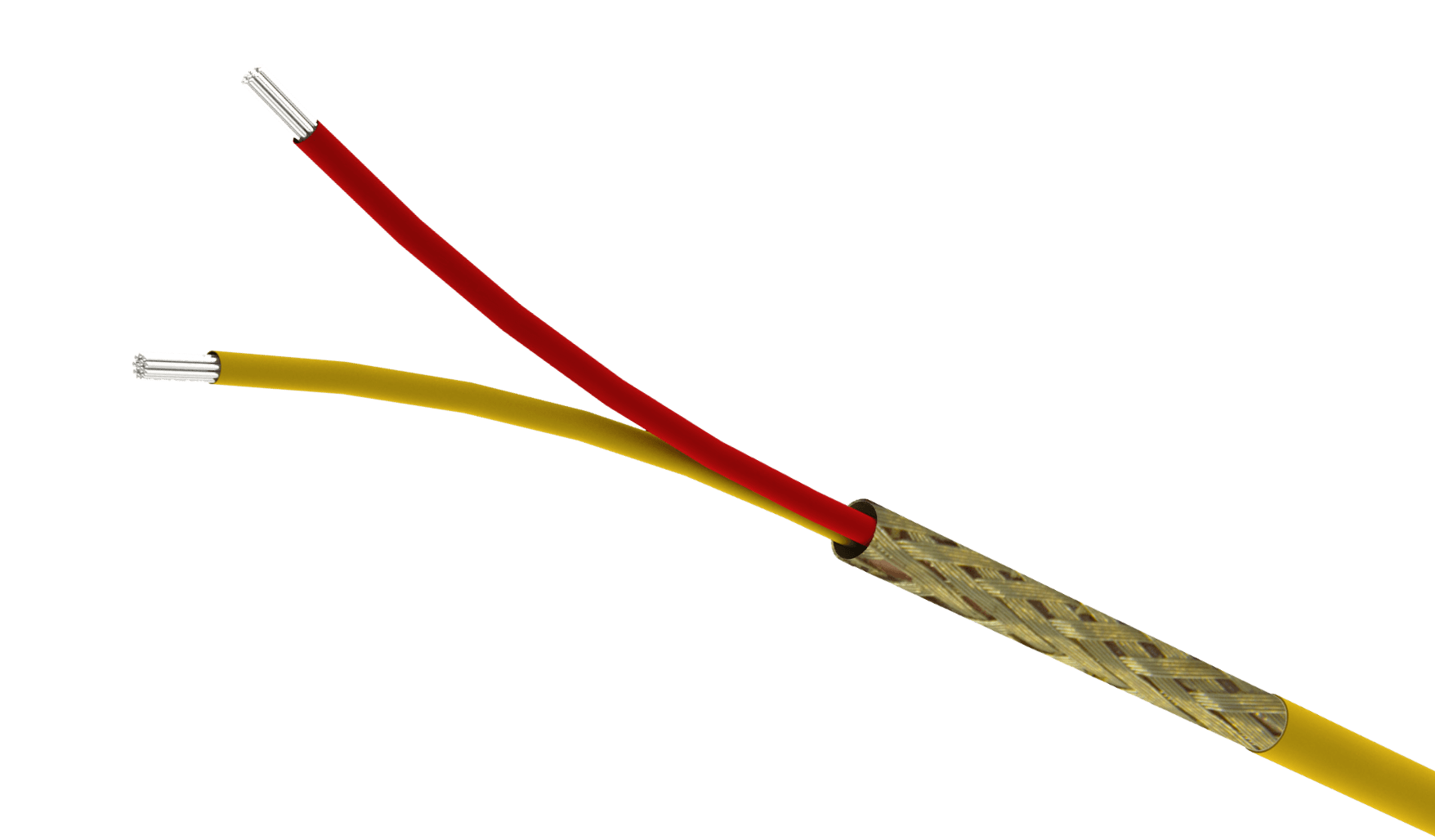

Silicone rubber insulation - tin plated copper braided screen - silicone rubber outer jacket (ANSI colour code)

APPLICATION
Flexible cables up to 200 °C

CONSTRUCTION
- Reference standard: ASTM E230 (ANSI MC96.1-1982)
- Conductor: solid or stranded
- Insulation: silicone rubber
- Core laying – up: twisted conductors
- Extra layer: polyester tape
- Screen: tin plated copper braid (silver-plated or nickel-plated copper braid available)
- Outer jacket: silicone rubber
- Working temperature: -40/+200 °C
- Insulation resistance: > 20 Mohm x km (measured at 1000 Volt dc @ 20 °C)

ALTERNATIVE VERSIONDIN 43714
- IEC 60584
- BS 1843
- NFC 42324
- JIS C 1610-1981
